Beam plucker is used for removing feathers from male and female turkey carcasses
OPERATION

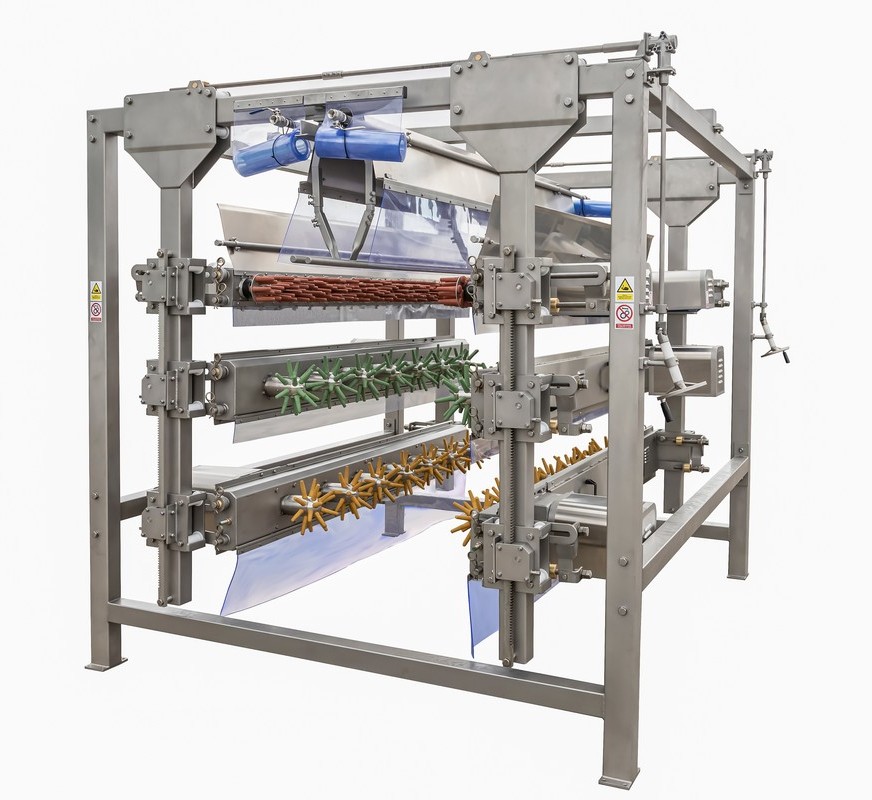

The basic elements of the plucking machine are a frame with 4 posts and 3 plucking beams hung on both sides on 2 posts. Two opposite upper beams are equipped with flat heads, on which rubber fingers are mounted. The other beams are equipped with spatial heads. Horizontal adjustment of beam spreading is made with a system of levers and worm gear driven electrically or manually. Vertical adjustment of the beams fixed on the poles is done with worm gears and a vertical gear bar fixed on the poles (there are 3 gears on one bar). The poultry, suspended on shackles, is introduced by a chain conveyor between rotating plucking discs. Both the angle of the beams and the distance of the rubber fingers from the plucked poultry are adjustable.
ADVANTAGES
– Wide range of applications
– Vertical adjustment of the beams
– Adjustable angle of beams and distance of fingers from the plucked bird
TECHNICAL SPECIFICATION |
||||||||||||
|
